2- Stage 50L/m Oil Free Lab Vacuum Pump Oilless Medical Mute Pump

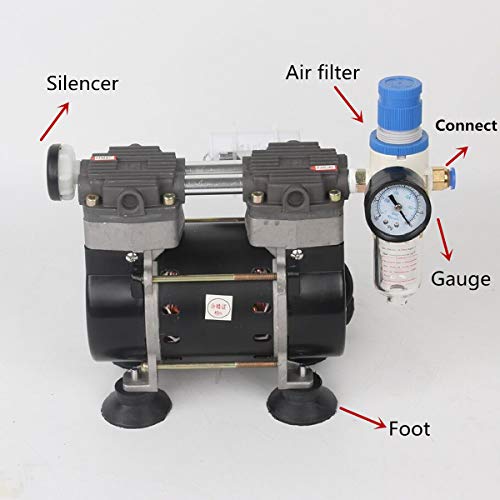

The Win Outdoor HZW-165 is a 2-stage, 50L/min oilless vacuum pump built for laboratories, beauty equipment, and medical setups. By replacing traditional oil-sealed pumps with an oil-free mechanism, it provides reliable air evacuation without the mess or upkeep of routine oil changes. Setup is straightforward: simply attach the included silencer to the air outlet, install the filter on the inlet, and plug it into a standard power outlet.

A major focus of this unit is acoustic comfort and mechanical reliability. The motor operates at 1400 RPM, a relatively low speed that reduces internal friction, wear, and mechanical noise. Combined with a soundproof casing and an outlet silencer, the pump limits operating noise to 55dB(A), making it suitable for quiet laboratory benches or clinical environments where loud machinery would be disruptive.

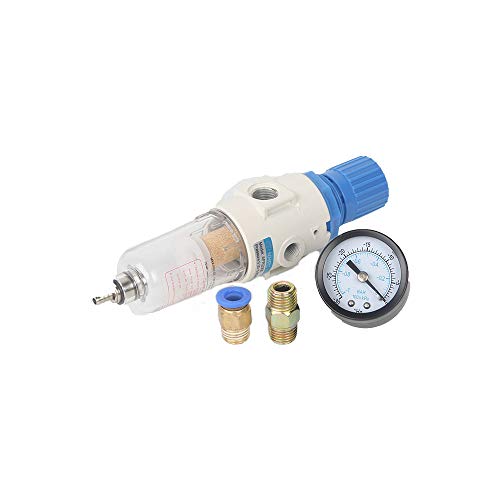

Daily operation is kept simple thanks to built-in monitoring and filtration. The air inlet filter system includes moisture separators to actively pull moisture and impurities out of the incoming air stream before they reach internal components. Users can also monitor real-time pressure levels at a glance using the integrated vacuum gauge.

While the oil-free design reduces everyday maintenance, there are operational boundaries to keep in mind. The unit is strictly rated for air pumping; it must not be used to pull liquids or oils. Additionally, the internal piston ring and sealing elements serve as wearable consumable parts that will eventually require replacement after extended service.

Verdict: The Win Outdoor HZW-165 is a solid, low-maintenance choice for anyone needing a clean, quiet vacuum source for lab or medical equipment. As long as your setup only requires air evacuation and stays clear of liquids, it delivers plug-and-play vacuum performance with minimal fuss.

• Model: HZW-165
• Pump Type: 2-Stage Oil-Free
• Flow Rate: 50 L/min
• Motor Speed: 1400 RPM
• Noise Level: 55 dB(A)
• Certifications: CE, RoHS

A great fit if you:

• Need a quiet vacuum pump that keeps sound levels around 55dB(A) in a workspace
• Want to avoid messy oil changes and fluid upkeep on lab or beauty equipment
• Require an integrated air filter to remove moisture and particulate from the air stream
• Need a certified CE and RoHS compliant vacuum source

Consider something else if you:

• Need to pump or transfer liquids, oils, or wet fluids
• Require a high-speed motor beyond 1400 RPM

Can this pump be used to transfer liquids or oils?
No. The pump is designed strictly for air pumping and should never be used with liquids or oil.

How loud is this vacuum pump during operation?
It operates at approximately 55dB(A) thanks to its soundproof casing, 1400 RPM motor, and included air outlet silencer.

What maintenance is required for this oil-free pump?
Because it does not use oil, standard fluid maintenance is eliminated. The only consumable parts that will eventually need service are the piston ring and sealing elements.

What is required to set up the pump out of the box?
Setup requires attaching the silencer to the air outlet, installing the air filter on the inlet, and plugging the unit into power.
