VIVOHOME 1/2 HP 5CFM 2 Stage AC Vacuum Pump and 4 Way

Name: VIVOHOME 1/2 HP 5CFM 2 Stage AC Vacuum Pump and 4 Way
Brand: VIVOHOME
SKU: B0F6Y83BB7

Disclosure: We may earn a commission when you buy through links on this page, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Learn more

9.2/10

View on Amazon

Highlights

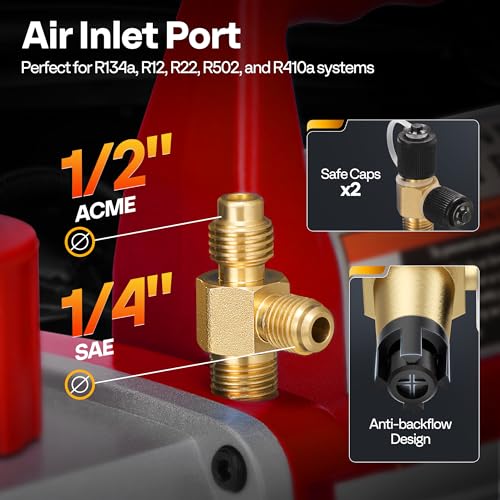

DUAL-STAGE HVAC PUMP: VIVOHOME's dual-stage pump achieves deeper vacuums via preliminary vacuum and further pressure reduction, ideal for demanding HVAC tasks; Includes 1/2” ACME, 1/4” SAE ports, and adapters (two R410a 1/4” male to 5/16” female, one 1/4” male to 1/2” female) for R134a, R12, R22, R502, R410a compatibility

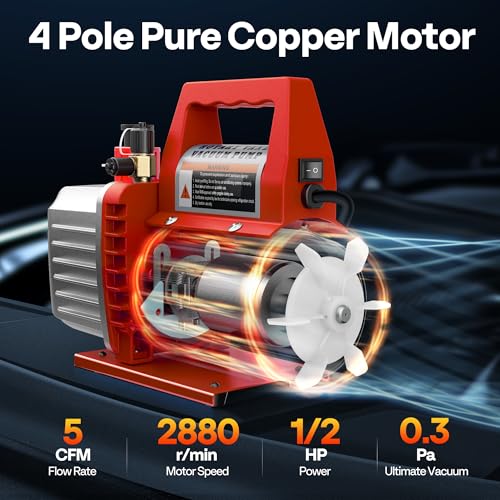

POWERFUL MOTOR: Equipped with a 1/2 HP high-torque, 4-pole copper motor, the VIVOHOME vacuum pump delivers 2880 RPM and a 5 CFM flow rate, evacuating systems down to 0.3 Pa (2.25 microns) in just 3 minutes for faster, more efficient performance and thorough evacuation
SAFE & QUIET OPERATION: An anti-backflow valve prevents oil backflow during sudden shutdowns; Integrated motor current protection prevents overload or phase loss that can lead to overheating or motor damage for reliable operation throughout its recommended duty cycle; A high-volume fan, large mesh vent, and T-shaped heat fins enhance heat dissipation, keeping noise levels under 65 dB for a quieter, more comfortable work environment

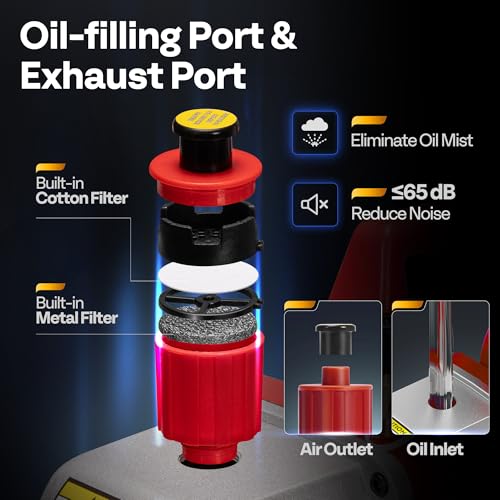

PORTABLE & USER-FRIENDLY: Easy to carry with an ergonomic handle and non-slip feet; The die-cast aluminum housing minimizes leaks, while the visible oil window allows easy monitoring of oil levels; A bottom drain valve simplifies maintenance, and the 304 stainless steel coarse filter blocks dust, while the cotton exhaust filter and metal filter remove oil mist

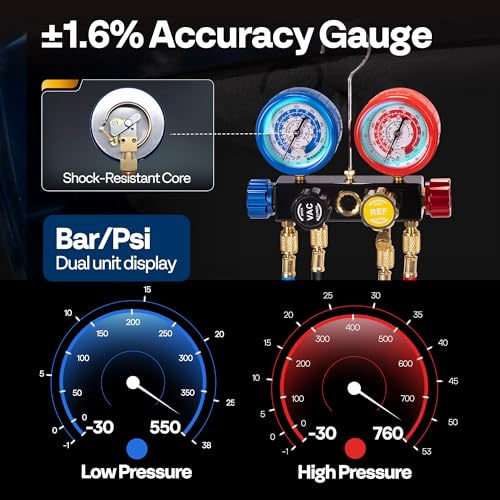

±1.6% ACCURACY GAUGE: This manifold gauge ensures precise pressure measurement for refrigeration systems; It features an oil-filled core to resist wear and a dry dial for better winter performance; A large sight glass allows clear refrigerant flow visibility, while color-coded gauges ensure accurate readings for refrigerant charging, diagnostics, and coolant recovery
DURABLE & PRACTICAL: Built with a shock-resistant core to protect internal mechanisms while the calibration screw for zero-setting and scales for R12, R22, R134a, and R410a refrigerants; Its rubber-wrapped design ensures durability, while the aluminum body adds strength; A convenient hook allows for hands-free operation, making it both tough and practical
4 COLOR-CODED HOSES: Easily identify the high-pressure (red), low-pressure (blue), refrigerant adding(yellow), and vacuuming(black) hoses; Made of 3 reinforced rubber layers with a leak-proof seal, these hoses are flexible, durable, and resistant to damage; Ideal for maintaining R134a, R12, R22, R502, and R410a air conditioning systems

Why You'll Love It

Dual-stage 1/2 HP copper motor reaches deep vacuums down to 2.25 microns
Pulls 5 CFM flow rate to evacuate HVAC systems in about 3 minutes
Built-in anti-backflow valve stops oil from backing up during unexpected power cuts
Four-way manifold gauge includes color-coded hoses for high, low, charging, and vacuum lines
Integrated sight glass and clear oil window make level and flow monitoring straightforward
Operates under 65 dB using a high-volume fan, mesh vent, and heat fins

Pros

+Reaches deep 0.3 Pa vacuum levels
+Full kit includes manifold and 4 hoses
+Quiet operation below 65 dB
+Anti-backflow valve protects against oil leaks
+Works with R134a, R12, R22, R502, and R410a

Cons

-Requires manual oil level tracking and drain maintenance
-Specific recommended duty cycle must be observed

Detailed Review

The VIVOHOME 1/2 HP 5CFM 2 Stage AC Vacuum Pump and 4 Way kit is a comprehensive evacuation and diagnostics set designed for servicing air conditioning and refrigeration systems. It caters to technicians and DIYers working with common refrigerants like R134a, R12, R22, R502, and R410a who need reliable evacuation power alongside accurate pressure monitoring.

Performance centers around a dual-stage design powered by a 1/2 HP, 4-pole copper motor running at 2880 RPM. Delivering a 5 CFM flow rate, the pump can pull systems down to 0.3 Pa (2.25 microns) in just 3 minutes. The dual-stage operation works in steps: a preliminary vacuum is followed by further pressure reduction to achieve the deep vacuum required for demanding HVAC service. The included 4-way manifold gauge offers plus or minus 1.6 percent accuracy, a calibration screw for zero-setting, and an oil-filled core to resist wear.

Daily usability and safety are well considered in the hardware design. An anti-backflow valve safeguards your setup by preventing oil from returning to the system during sudden shutdowns. Built-in motor current protection prevents overload or phase loss, while heat fins and a high-volume fan keep the motor cool and running under 65 dB. Maintenance is straightforward thanks to a bottom drain valve, a visible oil level window, a 304 stainless steel coarse filter for dust, and dedicated cotton and metal exhaust filters to capture oil mist.

While the set includes adapters and four reinforced rubber hoses (red for high pressure, blue for low pressure, yellow for charging, and black for vacuuming), users should be mindful of operating limits. The pump requires users to operate within its recommended duty cycle to prevent overheating, and regular filter and oil checks are necessary to keep the system running smoothly.

Verdict: This VIVOHOME vacuum pump and manifold kit is an excellent match for anyone needing a fast, dual-stage evacuation setup with precise diagnostic gauges for residential or automotive refrigerant work. It delivers deep vacuum performance and quiet operation in a complete, portable package.

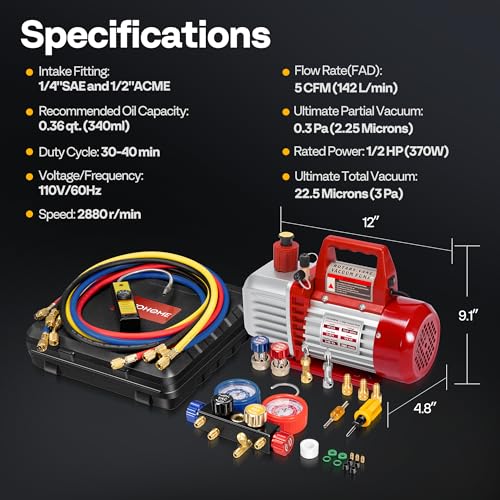

Specifications

Motor Power: 1/2 HP 4-pole copper motor
Flow Rate: 5 CFM
Motor Speed: 2880 RPM
Ultimate Vacuum: 0.3 Pa (2.25 microns)
Noise Level: Under 65 dB
Ports and Adapters: 1/2-inch ACME, 1/4-inch SAE, two R410a 1/4-inch male to 5/16-inch female adapters, one 1/4-inch male to 1/2-inch female adapter
Gauge Accuracy: ±1.6%
Refrigerant Compatibility: R134a, R12, R22, R502, R410a
Hose Count: 4 color-coded, 3-layer reinforced rubber hoses

Who Should Buy It

A great fit if you:

Need a complete evacuation kit with a dual-stage pump, manifold gauge, and hoses.
Work on systems using R134a, R12, R22, R502, or R410a refrigerants.
Want deep vacuum performance down to 2.25 microns in minutes.
Prefer a quieter pump that operates below 65 dB.

Consider something else if you:

Already own a complete manifold gauge set and only need a standalone pump.
Work with refrigerants not listed in the compatibility specifications.

FAQ

What refrigerants is this set compatible with?
The kit is compatible with R134a, R12, R22, R502, and R410a systems, and includes the necessary adapters for 1/4-inch and 5/16-inch connections.

How deep of a vacuum can this pump achieve?
The dual-stage pump can evacuate systems down to 0.3 Pa (2.25 microns) in approximately 3 minutes at a 5 CFM flow rate.

How noisy is the vacuum pump during operation?
The pump operates at noise levels under 65 dB, aided by a high-volume fan, large mesh vent, and T-shaped heat fins for efficient heat dissipation.

What hoses are included in the package?
It comes with four 3-layer reinforced rubber hoses: red for high pressure, blue for low pressure, yellow for refrigerant adding, and black for vacuuming.
