Filter Vacuum Pump Portable Pressure Pump with Tubing and Connectors

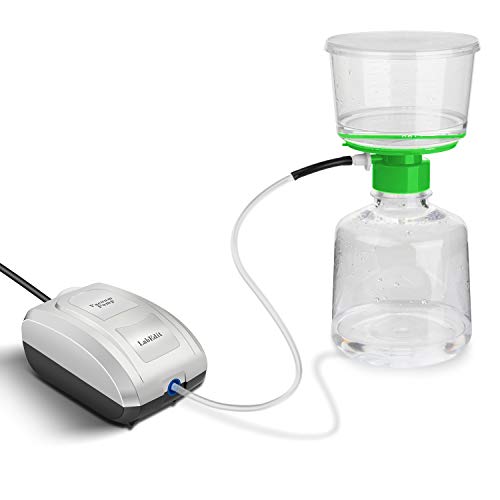

The LabEdit Filter Vacuum Pump is designed to speed up liquid draining in laboratory vacuum filtration and distillation setups. By actively lowering the internal pressure of a filtration flask, it helps process samples quicker than gravity filtration alone. This makes it a practical option for basic laboratory work, educational labs, or hobbyists needing to accelerate routine flask filtration.

Setup is straightforward thanks to the included tubing assortment. The package includes a transparent tube, a black silicone tube, and a yellow tube, each with distinct inner and outer diameters. The transparent tube plugs into the filtration unit alongside the black silicone line, while the yellow tubing can connect to the black tube to adapt to larger apparatus nozzles. These flexible connections allow the pump to pair with a variety of standard lab filter bottles.

Under the housing, the pump relies on internal copper wiring for extended durability and features an outer plastic shell that will not rust. To minimize benchtop disturbance, the unit is fitted with four shockproof rubber base feet. These rubber pads isolate vibration so effectively that you can barely hear the pump running during operation.

The primary trade-off is the limited vacuum depth. This pump is explicitly intended to lower pressure inside a filtration flask and does not generate the deep, high vacuum required for specialized laboratory tasks. Additionally, it runs on standard US 110-120V at 60Hz, so it cannot be used with different international voltages without proper power adaptation.

Verdict: The LabEdit Filter Vacuum Pump is an ideal choice for users needing an affordable, quiet tool to speed up liquid filtration in standard flask setups. If your workspace uses standard 110-120V power and you do not require high-vacuum draw, this compact pump provides dependable utility.

• Operating Voltage: 110-120V
• Frequency: 60Hz

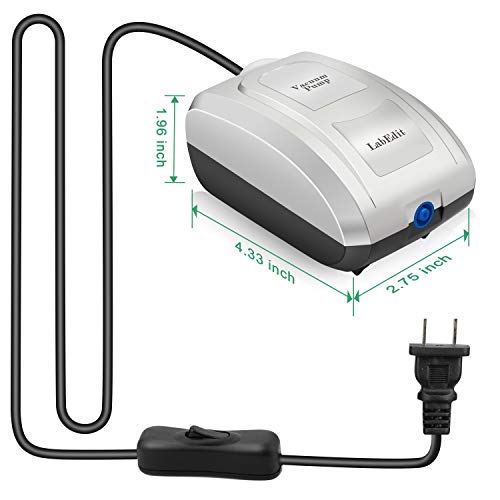

• Housing Material: Plastic shell with 4 shockproof rubber base feet
• Motor Wiring: Copper wire
• Included Tubing 1: Transparent tube (4mm ID x 5mm OD)
• Included Tubing 2: Black tubing (5mm ID x 7mm OD)
• Included Tubing 3: Yellow tubing (6mm ID x 9mm OD)

A great fit if you:

• Need to speed up liquid filtering through a vacuum distillation apparatus.
• Work in an environment equipped with standard US 110-120V 60Hz outlets.
• Require a quiet benchtop pump with minimal vibration.
• Need flexible tubing to connect to multiple nozzle sizes.

Consider something else if you:

• Require deep, high-vacuum suction for advanced laboratory processes.
• Need a pump compatible with international 220V or 50Hz power grids.

Can this pump be used for high-vacuum applications?
No. The pump is specifically designed to lower pressure inside a vacuum filtration flask to speed up liquid filtering, not to pull a high vacuum.

What sizes of tubing come with the pump?
It includes three tubes: a transparent tube (4mm ID x 5mm OD), a black tube (5mm ID x 7mm OD), and a yellow tube (6mm ID x 9mm OD).

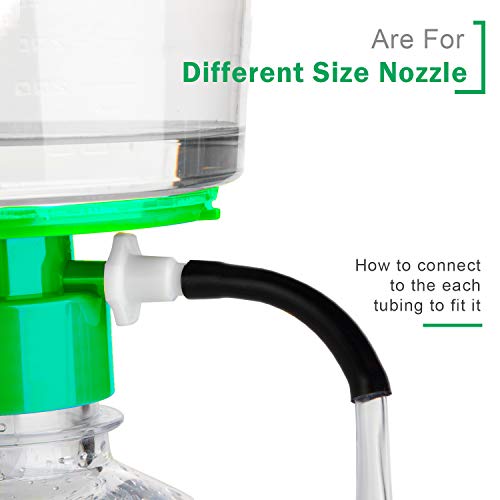

How do I connect the pump to a larger nozzle on my filter apparatus?

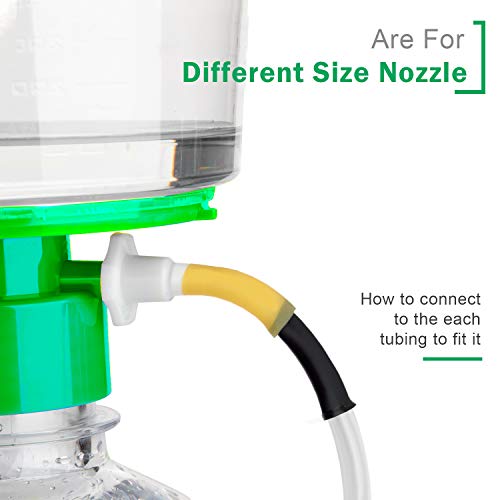

You can connect the larger yellow tubing to the black tubing, which allows the assembly to attach securely to larger nozzles.

What electrical standards does this pump require?
The pump operates on 110-120V at 60Hz, which is standard for the US market.
